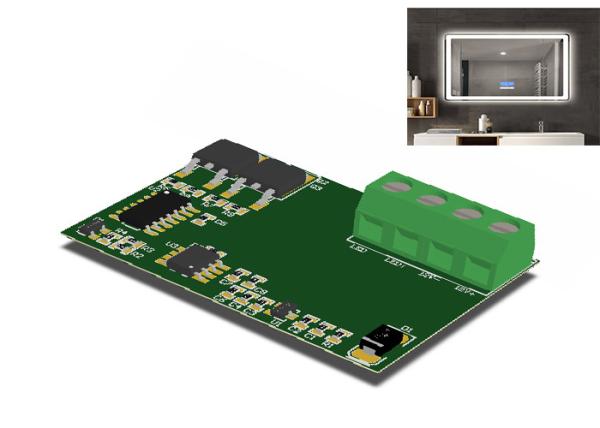

DC24V 32kHz Hand Infrared Bathroom Light PCBA Circuit Board With Sensor
Specification
| Characteristic |
isolation protection |
| Key |
1 key-5 key |
| Power |
0.9A |
| PWM frequency |
32kHz |
| Type of board |
Touch control board |
| Function |
Memory function |
| Setting |
touch-sensitive sensor |
Additional details
1.This product is one-key stepless dimming;
2.This product is a touch-sensitive sensor switch, sensitive response, quiet and fast;
Operation instruction
At the initial power-on, the light is off; the backlight is always on when powered on.
When the touch is touched (the touch duration is less than 550ms), the lighting can be controlled.
One click to touch, the light is on; another click to touch, the light is off. This cycle. When the light is on or off, there is a brightness buffer. And the initial brightness of the light is fixed at 50% of the full brightness. When long press the touch (the touch duration is greater than 550ms), stepless brightness adjustment of the light can be achieved. Once long touch, the light brightness gradually increases. When released, the light brightness stops at the corresponding brightness at the moment of release.
Package
1. Anti-static bubble film shall be used for packaging and packing after piecing together
2. Matters needing attention when packing
1) Considering the force comprehensively, the direction set up after PCBA packing should be the same as that of corrugated carton
2) Avoid the collision between PCBas during packaging; Appropriate placement and bubble film thickness should be selected.
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you jave to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive T/T, West Union, Cash and etc
