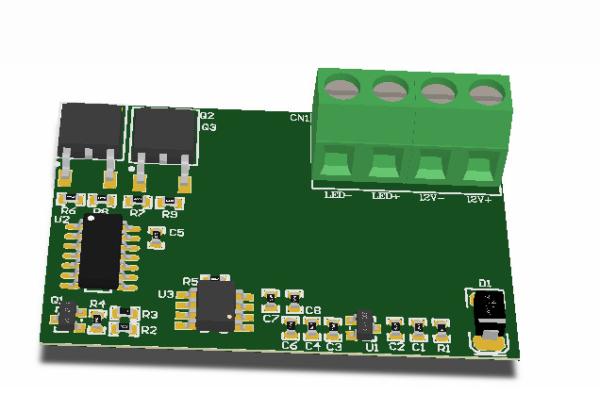

One Touch Key 32kHz Bathroom Light PCBA Circuit Board With Welding Wire
Specification
| Key |
1 key-5 key |
| Output (load) parameter requirements |
600mA |
| Power |
DC24V/0.9A |
| Drive type |
MOS tube |
| Number and type of boards |
1 touch control board |
| The man-machine interface displays |
Touch button has white backlight indication |
| Need external (purchase) accessories (specifications) |
None |
Operation
1) At the initial power-on, the light is off; the backlight is always on when powered on.
When the touch is touched (the touch duration is less than 550ms), the lighting can be controlled.
2) One click to touch, the light is on; another click to touch, the light is off. This cycle. When the light is on or off, there is a brightness buffer. And the initial brightness of the light is fixed at 50% of the full brightness. When long press the touch (the touch duration is greater than 550ms), stepless brightness adjustment of the light can be achieved. Once long touch, the light brightness gradually increases. When released, the light brightness stops at the corresponding brightness at the moment of release.
Feature
1. LED do soft light treatment, no video flash, practice verification;
2. This product is one-key stepless dimming;
3. This product is a touch-sensitive sensor switch, sensitive response, quiet and fast;
4. The touch function can be realized under the condition of medium (such as glass, acrylic, plastic, ceramic, etc.) isolation protection, high safety performance
Our Services:
1) One-to-one service with efficient support;
2) OEM&ODM: OEM packages no extra charges for over 1000sets
3) Protection of your design and all your private information
4) We could supply unique items;
5) Convenient payment terms: Paypal, bank-in, T/T, Western Union and others.
6) Speedy shipment: we could arrange the shipment within 5 business days
Why choose us?
- Advanced technology: Always with professional, innovation as the purpose, to provide customers with high price products, improve various performance, for customers to solve all kinds of difficult problems
- Professional production line: there are several professional production lines, each process has professionals in charge of the whole process, strictly implement various industry standards, according to customer needs to provide professional solutions
- High-precision equipment: domestic famous brand materials, quality assurance; High-precision production equipment, can do better products
- One-stop service system: with a professional design and after-sales team, quickly solve various problems of customers, so that customers truly experience after-sales worry-free experience
Product Tags:
|
|
32kHz PCBA PCB Assembly Images
|
